Black silicon photodiodes


Schematic of Black silicon photodiode.

ElFys Oy offers induced junction black silicon photodiodes with external quantum efficiency (EQE) greater than 96% over a broad range of wavelengths (250 to 950 nm). The collection efficiency has been enhanced by employing a surface nanostructuring technique combined with a conformal ALD alumina coating. This results into reliable and nearly ideal device response with incident angles up to 70 degrees. The induced junction virtually eliminates  Auger recombination of light generated charge carriers and this way prevents the formation of a dead layer. Additionally, the applied highly effective surface passivation technology, eliminates surface recombination. This combination significantly boosts the collection efficiency of signal charges generated really close to the photodiode top surface, yielding an exceptional over 100% quantum efficiency for ultraviolet light. Furthermore, a nearly ideal response is maintained over the entire optical spectrum shown in figures (see also reference [1]). Integrating this technology into silicon imaging detectors leads to significant performance improvements in terms of sensitivity and spectral range particularly in ultraviolet region [2].

Corresponding response curve and comparison to typical pn-junction and UV-enhanced silicon photodiodes. Ideal response corresponding to 100% EQE is also shown for reference.


[1] M. A. Juntunen, J. Heinonen, V. Vähänissi, P. Repo, D. Valluru, and H. Savin, “Near-unity quan-tum efficiency of broadband black silicon photodiodes with an induced junction”. Nature Photonics, 10(12), 777-781, 2016

[2] M. A. Juntunen, J. Heinonen, H. S. Laine, V. Vähänissi, P. Repo, A. Vaskuri and H. Savin, ”N-type Induced junction Black Silicon photodiode for UV detection”. Proc. SPIE 10249, Integrated Pho-tonics: Materials, Devices, and Applications IV, 102490I, 2017

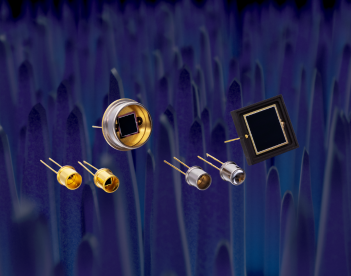

A silicon wafer and black silicon photodiodes.

Individual photodiodes are available with active areas e.g. 2,4 x 2,4 mm2, Ø 5mm (19,6 mm2) and 5 x 5 mm2. We can also manufacture custom design sizes and shapes as well as arrays and matrices of photodiodes, which enable a drop in replacement of your current photodiode

  • Maximum chip size about 50 x 70 mm2
  • Minimum individual active area size about 0,1*0,1mm2
  • Typical parameters of black silicon photodiodes are listed in Table I

The high EQE results from zero reflection of black silicon surface combined with no dead layer of induced junction. These innovations improve the absorption of light and collection of generated charge carriers. In the ultraviolet light region this means 2-3 times higher response compared to other silicon photodiodes optimized for UV detection. Similarly, the black silicon photodiodes give around 30% more signal in scintillator applications compared to standard photodiodes as the broad and high EQE improves overall response to emission spectrum of typical scintillator materials.

Table I Typical leakage current, response and capacitance values of the Black Silicon photodiodes.

Lekage current pA/mm2 Response A/W Capacitance (pF/mm2)
at 10 mV at -5 V at -100 V at 250 nm at 400 nm at 910 nm at 0 V at -1 V
8 35 50 0.23 0.30 0.70 2.81 1.15



ElFys Oy was founded in fall 2017 to commercialize the black silicon photodiode technology invented by a group of university researchers. The company owns the intellectual property rights to the technologies of both planar and black silicon n-type induced junction photodiodes. The company utilizies the state-of-the-art processing facilities of Micronova Nanofabrication Center, which are suitable for both flexible R&D and semi-mass production. One main aspect of the technology is the sub-micron structures of black silicon that result into longer optical path and close to zero reflection within wide ranges of wavelengths and acceptance angles. When combined with ALD deposited aluminium oxide layer, an induced junction is formed which results into nearly ideal photodetector [1].  Integrating this technology into silicon imaging detectors leads significant performance improvements in terms of sensitivity and spectral range particularly in ultraviolet region [2].

Partners of the company also have vast expertise on silicon photovoltaics and related research. The structure and operation principles of solar cells and photodiodes are very similar and thus innovations from solar cells can often be applied to photodiodes and vice versa. Topics like surface passivation and defect engineering are integral parts of the manufacturing process and essential for achieving the superior response of our photodiodes.
